Filtro di ventilazione

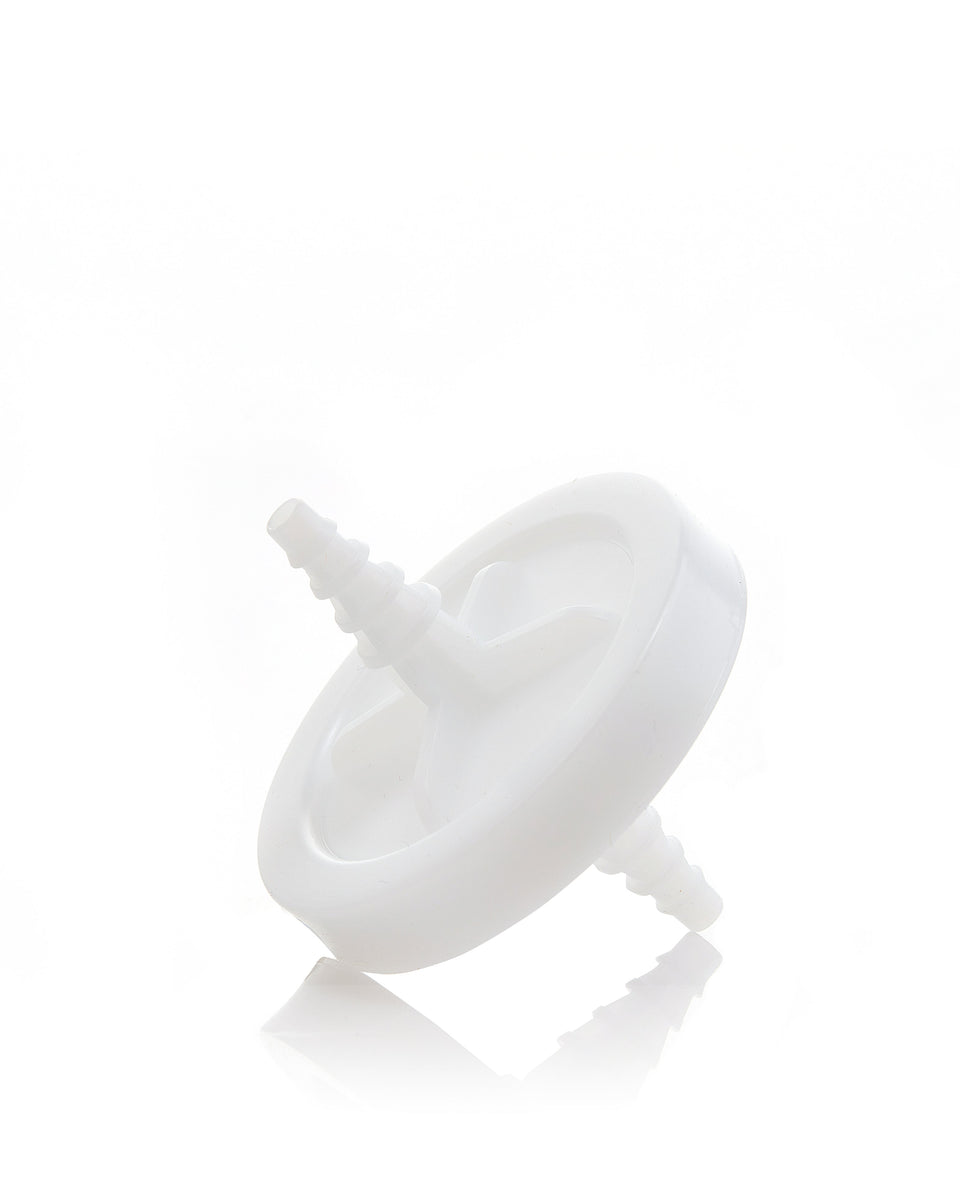

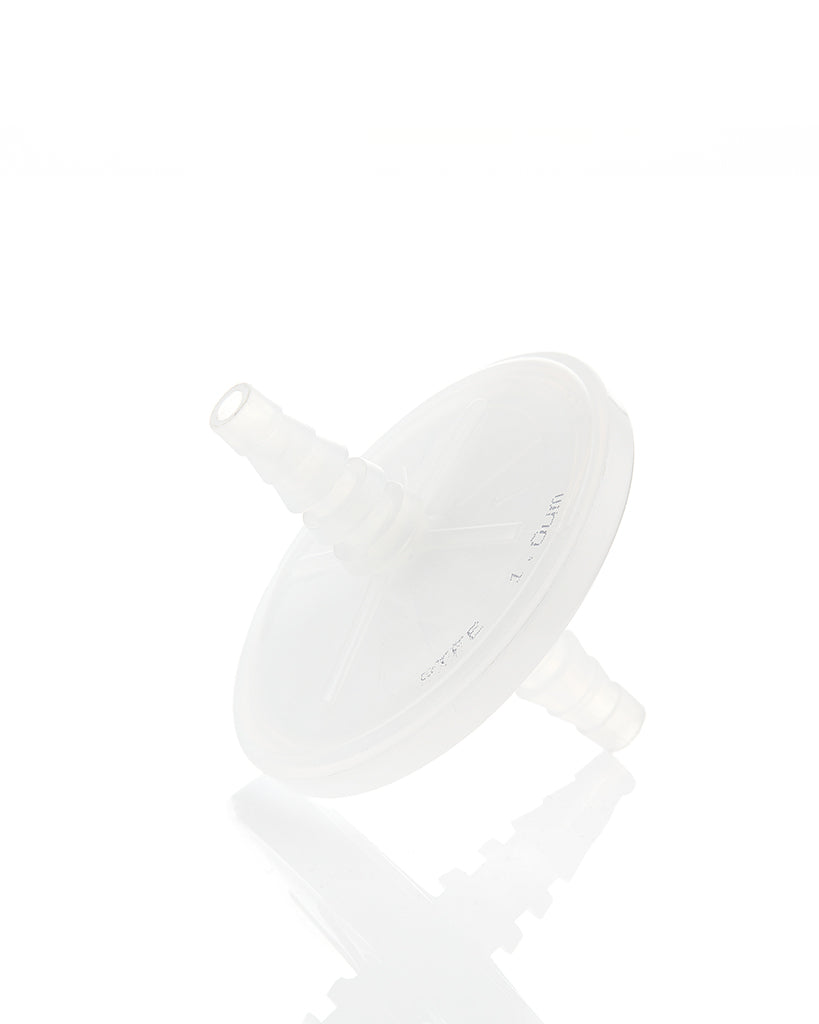

Hydrophobic PTFE Vent Filter for Sterile Bioreactor and Fermentation Venting Applications labsafetyshop.com EZBio® Vent Filters are used for hydrophobic venting and gas filtration applications. The PTFE filter membrane is ideal for maintaining purified water stored in carboys, or for sterile venting during a slow exhaust/liquid autoclave cycle of EZgrip™ carboys. Housed inside the USP Class VI polypropylene body, a hydrophobic PTFE membrane traps aerosolized bacteria, allowing for the creation and maintenance of aseptic, closed systems. The membrane is reinforced with specialized polypropylene support, meaning EZBio® Vent Filters can even be sterilized by gamma irradiation. Features • Hydrophobic PTFE membrane reinforced in polypropylene• Available in 0.22µm pore size• Gamma Sterilizable • Autoclavable• All materials comply with USP Class VI standards Specifications • Applications: Venting bioreactors, Culture Vessels, and Fermentation tanks• Available in 5, 25, 100 per pack• Color: Clear• Casing Material: Polypropylene• Filter Media: Hydrophobic PTFE• Max Operation Temperature: 60°C/140°F• Typical Air Flow Rate: ≥2.0L/min@10kPa• Bubble Point: 0.09MPa (25°C/77°F, 99.7% Alcohol)• Water Intrusion Pressure: ≥0.2/MPa• Air Leakage: 300kpa, 15s• Burst Pressure: ≥4 bar• Sterilization: Can be sterilized by gamma irradiation. 50kGy maximum.• Manufactured in Class 100000 Clean Room • ISO 13485 • Filter Pore Size: 0.2µm• Diameter: Φ65 (for PTFE)• Inlet/Outlet: ¼” – ½” stepped hose barb connection with 6:100 Luer slip Documentation EZBio Vent Filter Datasheet Videos Videos Coming Soon!
