CPC

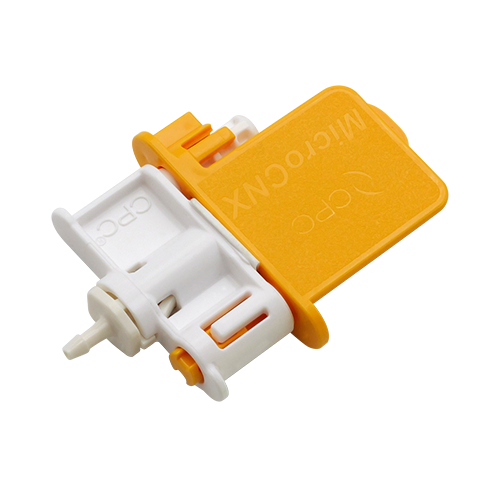

Connettore MicroCNX® Nano senza genere con raccordo a barb per tubo flessibile da 1/16".

ITEM # CNY17101HT-25

Sale

In sintesi

MicroCNX® aspetic connectors are the only micro-connectors that provide a simple, efficient method of connecting tubing for small-format biomanufacturing assemblies. The MicroCNX series is engineered specifically for the challenging conditions of biological media transfer in bioprocessing, cell therapy, and gene therapy applications. The connector comes in a range of tubing sizes featuring a luer connection option to create a sterile, closed connection on an existing luer connection. The ULT/Nano versions are ideal for assemblies in cryogenic freezing cassettes or connection to PVC tubing.

Pricing (Based on quantity)

Quantity Price / Unit
MSRP $1289.69
Sale $1096.23 /unit
Total $1096.23
MSRP $1289.69
Sale $1096.23 /unit
Total $1096.23

Add to your cart to unlock

Add to your cart to unlock

Pack Size

Realizzato su ordinazione
Questo articolo viene realizzato su ordinazione. Il tempo di spedizione stimato è di 6-8 settimane (indicativo).
Richiedi un preventivo per acquisti all'ingrosso
Offriamo un programma di prezzi speciali: crea un account gratuito per ottenere un ulteriore sconto del 5%, poi naviga e fai acquisti al prezzo riservato al tuo account. Crea un account gratuito

Ogni prodotto. Ogni centesimo.

Acquisto senza rischi grazie alla nostra garanzia di rimborso al 100%.

Consulenza di esperti sempre gratuita.

Il nostro team di assistenza tecnica sarà lieto di aiutarvi!

Persone vere. Niente robot.

Le chiamate vengono messe in contatto con un operatore entro 9 secondi.

Oltre 2.000 clienti

Prodotti utilizzati in 12 paesi su 3 continenti.

Oltre 3.000 prodotti

Da oltre 20 marchi affidabili.

Oltre 20 anni di esperienza

Specialisti in sicurezza di laboratorio dal 2008.

Scarica la scheda tecnica

Genderless Hose Barb Connector for Aseptic Single-Use Bioprocessing Tubing Assemblies

MicroCNX® aspetic connectors are the only micro-connectors that provide a simple, efficient method of connecting tubing for small-format biomanufacturing assemblies. The MicroCNX series is engineered specifically for the challenging conditions of biological media transfer in bioprocessing, cell therapy, and gene therapy applications. The connector comes in a range of tubing sizes featuring a luer connection option to create a sterile, closed connection on an existing luer connection. The ULT/Nano versions are ideal for assemblies in cryogenic freezing cassettes or connection to PVC tubing.

Features

  • Aseptic, single-use connection technology: Do not have to make connections in the Bio Safety Cabinet (BSC), and is a better option for small format tubing where tube welding fails—the only aseptic media transfer method that consistently and reliably transfers aseptic fluid at 1/16" tubing.
  • Ultra-Low Temperature and Chemical compatibility: Termination and flow path are made from PPSU to allow for increased chemical compatibility without deterioration, and able to handle harsh chemicals like liquid nitrogen and Dimethly Sulfoxide (DMSO). Can be frozen down to vaporized liquid nitrogen temperature (-190C) ?(MicroCNX ULT and MicroCNX Nano).
  • PULL-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error.
  • Genderless: Eases single-use systems specifications with one part number for both halves.
  • CPC Click: Audible confirmation of assembly with no additional hardware required.
  • PVC tubing: Fully compatibility with all PVC tubing (MicroCNX ULT and MicroCNX Nano).
  • Low and ultra-low profiles: The smallest profile with a compact size that fits in freeze cassettes (MicroCNX ULT and MicroCNX Nano)
  • Low Hold-up Volume: Minimize lost fluid during transfers.

Applications

  • Media and buffer transfer
  • Sampling
  • Filtration process
  • Harvest and collection
  • Upstream and downstream connections

Specifications

Operating Conditions (Fluid Transfer):
Temperature 34°F to 104°F (1°C to 40°C)
Pressure Up to 60 psi, 4.1 bar (Standard*) & Up to 75 psi, 5.1 bar for 48 hours (Standard*)
Up to 43.5 psi, 3 bar (ULT** and Luer***) & Up to 29 psi, 2 bar (Nano****)
Materials:
Main Components Polycarbonate (white), Polyphenylsulfone (off white)
Seals Silicone (clear), platinum-cured
Protective Cover Polypropylene (teal), Polycarbonate (gold)
Membrane Hydrophobic Polyethersulfone
Sterilization:
Gamma Up to 50 kGy irradiation
Autoclave One Cycle up to 266°F (130°C) for 60 minutes; (Standard*, Luer***, Nano****)
One cycle up to 250°F (121°C) for 30 minutes; (ULT**)
CV Value (Typical Flow Rate):
CV Value Cv Value Range 0.04-0.27 (Standard*, ULT**, Luer***)
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.
*STANDARD: CNX17001HT; CNX17002HT; CNX17003HT **ULT: CNX17101HT; CNX17102HT; CNX17103HT ***LUERS: CNX170LMHT; CNX170LFHT ****NANO: CNY17101HT; CNY17103HT; CNY17102HT
