Raccordo a barb per tubo flessibile RevolveSD serie 16, 1" x 1".

ITEM # ADL17116-22116-1

Sale

At a Glance

RevolveSD sterile disconnects enable sterile disconnection of single-use biopharma and cell and gene therapy manufacturing systems. With an easy twist of the connector shell, sterility is maintained on both sides of the system during the disconnection process. The RevolveSD connector includes protective locking tabs to help reduce the chance of accidental disconnection, and are designed to be irreversible, making it a true one-time disconnect.

Scarica la scheda tecnica

PDF

Scarica la scheda tecnica

Ogni prodotto. Ogni centesimo.

Acquisto senza rischi grazie alla nostra garanzia di rimborso al 100%.

Consulenza di esperti sempre gratuita.

Il nostro team di assistenza tecnica sarà lieto di aiutarvi!

Persone vere. Niente robot.

Le chiamate vengono messe in contatto con un operatore entro 9 secondi.

Con oltre 300.000 clienti

Prodotti utilizzati in 100 paesi di 7 continenti.

Pricing (Based on quantity)

Quantity Price / Unit

MRP $402.67

Sale /unit

Total $342.27

Add to your cart to unlock

Pack Size

Made to Order

This item is made to order and ships in 2–4 weeks.

Richiedi un preventivo per acquisti all'ingrosso

Offriamo un programma di prezzi speciali: crea un account gratuito per ottenere un ulteriore sconto del 5%, poi naviga e fai acquisti al prezzo riservato al tuo account. Crea un account gratuito

Ogni prodotto. Ogni centesimo.

Acquisto senza rischi grazie alla nostra garanzia di rimborso al 100%.

Consulenza di esperti sempre gratuita.

Il nostro team di assistenza tecnica sarà lieto di aiutarvi!

Persone vere. Niente robot.

Le chiamate vengono messe in contatto con un operatore entro 9 secondi.

Con oltre 300.000 clienti

Prodotti utilizzati in 100 paesi di 7 continenti.

Scarica la scheda tecnica

PDF

Scarica la scheda tecnica

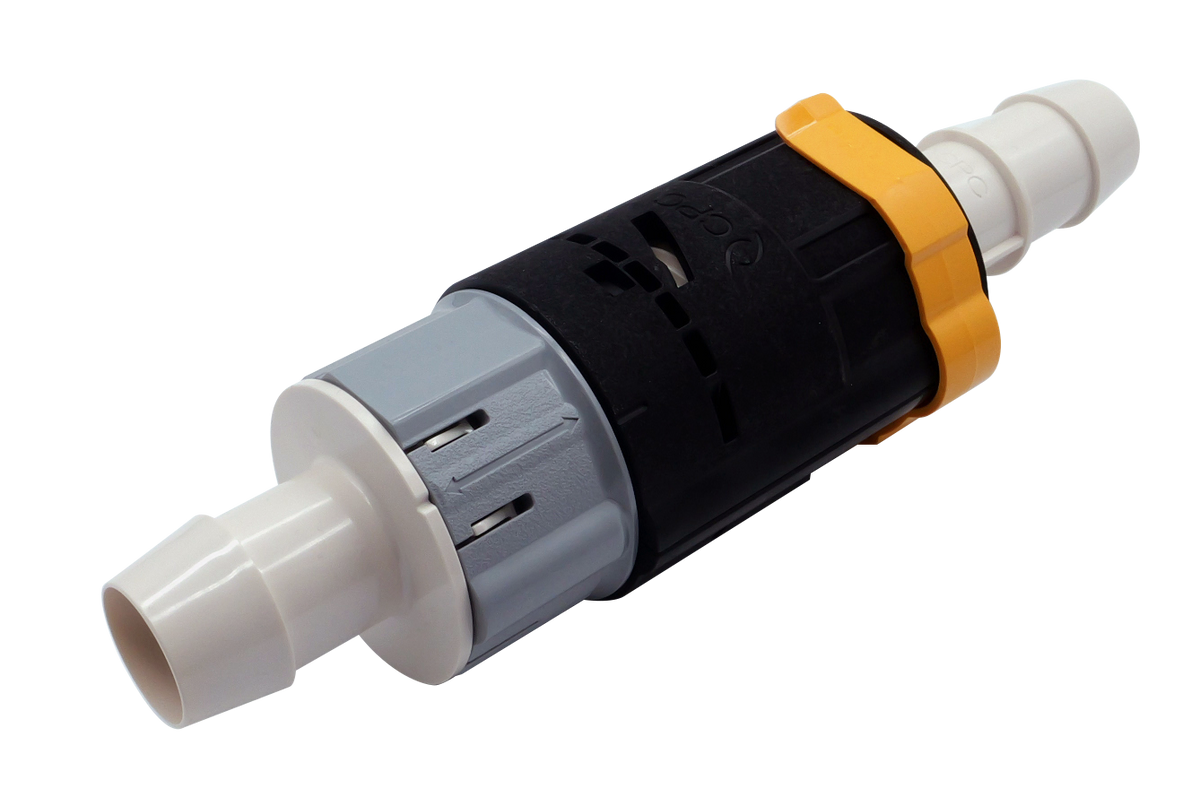

Sterile Disconnect Connector Featuring Polyphenylsulfone Construction for Single-Use Bioprocessing Systems

Features

Remove & Revolve: Easy two-step process enabling on-demand sterile disconnection.
No Equipment Needed: Simplify your disconnection process by removing unneeded equipment or machines.
Smooth Flow: Optimized flow path means enhanced smoothness and size to minimize turbulence and restriction.
Irreversible: True one-time disconnect process avoids accidental reconnection that could breach process sterility.
Chemical Compatibility: Increased compatibility to harsh chemicals through carefully selected materials and no spring in flow path.
Sterility Protection: Locking tab reduces risk of operator error of early disconnect & new dual valve technology ensures sealing to reduce residual fluid.

Applications

Media and buffer transfer
Sampling
Filtration process
Harvest and collection
Upstream and downstream connections

Specifications

Operating Conditions (Fluid Transfer):
Connected	Up to 60 psi (4.1 bar), Up to 75 psi (5.17 bar) for 48 hours
Disconnected	Up to 10 psi, 0.7 bar
Flow Path Materials:
Main Components	Polyphenylsulfone (off white)
O-rings	Silicone (clear), platinum-cured
Sterilization:
Gamma	Up to 50 kGy irradiation
Autoclave	One cycle up to 266°F (130°C) for 60 minutes, one cycle
Key Features:
Shell	Polyvinylidene fluoride (black)
Housing	Polycarbonate (gray)
Protective Tab	Polycarbonate (gold)
