At a Glance
Introducing the first all-in-one, genderless, single-use connection technology to offer both a sterile connection and a sterile disconnection. With the AseptiQuik G DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments. The intuitive Flip - Click - Pull design of the AseptiQuik G DC connector enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple two-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path. The connector's robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.
Télécharger la fiche technique
Chaque produit. Chaque centime.
Sans risque grâce à notre garantie de remboursement à 100 %.
Conseils d'experts toujours gratuits
Notre équipe technique est heureuse de vous aider !
De vraies personnes. Pas de robots.
Les appels sont mis en relation avec un conseiller humain en moins de 9 secondes.
Forts de plus de 300 000 clients
Des produits utilisés dans 100 pays sur 7 continents.
Pricing (Based on quantity)
- ✓ ○
Add to your cart to unlock
Use code at checkout — unlocked! No code unlocked yet — add more to reach and get
Pack Size
Chaque produit. Chaque centime.
Sans risque grâce à notre garantie de remboursement à 100 %.
Conseils d'experts toujours gratuits
Notre équipe technique est heureuse de vous aider !
De vraies personnes. Pas de robots.
Les appels sont mis en relation avec un conseiller humain en moins de 9 secondes.
Forts de plus de 300 000 clients
Des produits utilisés dans 100 pays sur 7 continents.
Télécharger la fiche technique

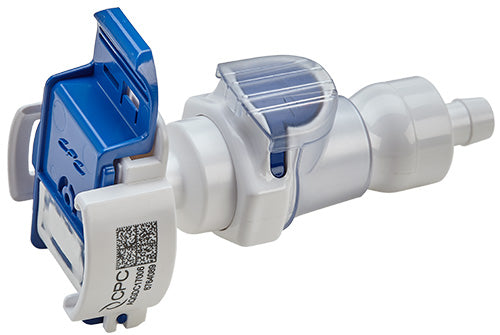

Genderless Polycarbonate Single-Use Sterile Connector Disconnect for Fluid Transfer Applications
Introducing the first all-in-one, genderless, single-use connection technology to offer both a sterile connection and a sterile disconnection. With the AseptiQuik G DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments. The intuitive Flip - Click - Pull design of the AseptiQuik G DC connector enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple two-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path. The connector's robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.
Features
- Genderless: Eases single-use systems specifications with one part number for both halves.
- FLIP - CLICK - PULL: Intuitive? three-step connection process reduces risk of operator error.
- Simple Two-Step Disconnection: Maintains media sterility in each half by preventing external organisms from entering the flow path.
- Membrane Pull Tabs: Ensure simultaneous and secure removal of both membranes.
- Automatic Shutoff Valves: Eliminate the need for pinch clamps or tube welders.
- Protective Thumb Latch Cover: Eliminates accidental disconnects.
- Alloy C-276 internal flow path spring: Enables broader application compatibility.
Applications
- Media and buffer transfer
- Sampling
- Filtration process
- Harvest and collection
- Upstream and downstream connections
Specifications
| Operating Conditions (Fluid Transfer): | |
| Pressure | Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours |
| Temperature | 34°F to 104°F (1°C to 40°C) |
| Typical Flow Rate | Cv Value Range: 0.8 to 1.90 for AseptiQuik® G DC hose barb terminations |
| Materials: | |
| Connector | Polycarbonate (white) |
| Thumb latch | Polycarbonate (blue) |
| Pull Tabs/Caps | Polycarbonate (blue, standard version) |
| Seals | Silicone (clear), platinum-cured |
| Membrane | Polyethylene |
| Springs | Alloy C-276 |
| CV Value: | |
| CV Value Range: 0.8-1.90 | |
| Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path. | |
| Sterilization: | |
| Gamma | Up to 50kGy irradiation |
| Other: | |
| Termination Size | 1/4", 3/8", 1/2" hose barb (6.4mm, 9.5mm, 12.7mm) |
Documentation
AseptiQuik® G DC ConnectorsClick on Datasheet link for a full list of our product datasheets!
