C DC Connectors

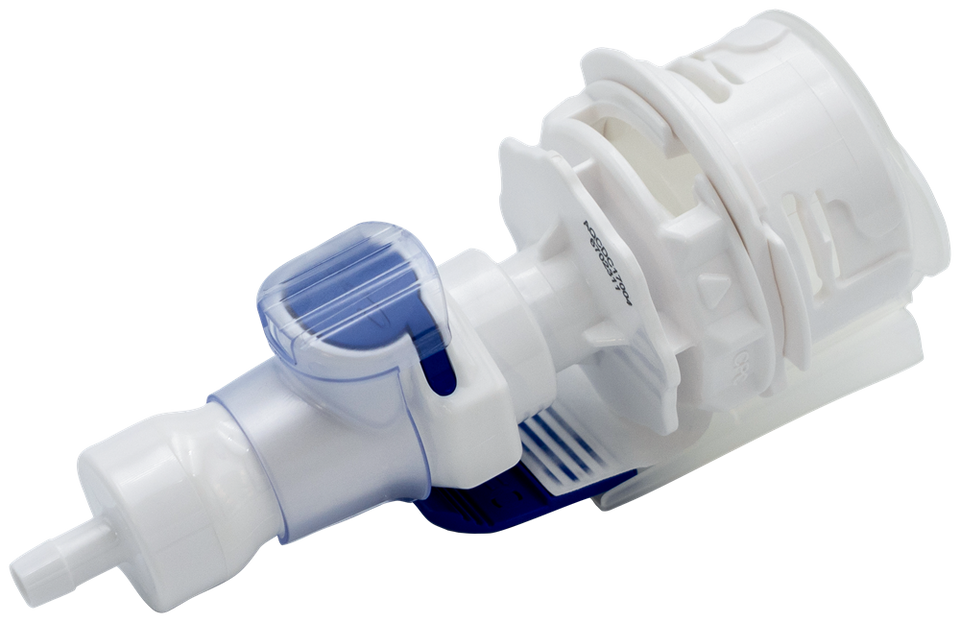

AseptiQuik® C DC Connector AseptiQuik® C DC Connector is the first all-in-one single-use connection technology to offer both a sterile connection and a sterile disconnection. Wi... AseptiQuik® C DC Connector AseptiQuik® C DC Connector is the first all-in-one single-use connection technology to offer both a sterile connection and a sterile disconnection. With the new AseptiQuik C DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments. AseptiQuik C DC's intuitive CLICK-PULL-TWIST design enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple one-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path. The connector's robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders. CLICK-PULL-TWIST Design: Intuitive? three-step connection process reduces risk of operator error. Simple One-Step Disconnection: Maintains media sterility. Membrane Pull Tabs: Ensure simultaneous and secure removal of both membranes. Robust Construction: Integrated lock ring and innovative seal technology ensure reliable performance. Market Availability: Open access through multiple supply chain partners. Media and buffer transfer Sampling Filtration process Harvest and collection Upstream and downstream connections Operating Conditions (Fluid Transfer): Pressure Up to 60 psi, 4.1 bar Temperature 39°F to 104°F (4°C to 40°C) Typical Flow Rate: Cv ~ 0.077 to 1.9 Materials: Connector Polycarbonate (white) Lock Ring and Thumb latch Polycarbonate (white) Pull Tabs Polycarbonate (blue, standard version) Caps Polypropylene (clear) Seals Silicone (clear), platinum-cured Membrane Polyethylene (standard version) Springs 316 Stainless Steel CV Value: Cv~0.77 max (1/4" hose barb) Cv~1.1 max (3/8" hose barb) Cv~1.2 max (1/2" hose barb) Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path. AseptiQuik® C DC Connector Click on Datasheet link for a full list of our product datasheets!
