L Connectors

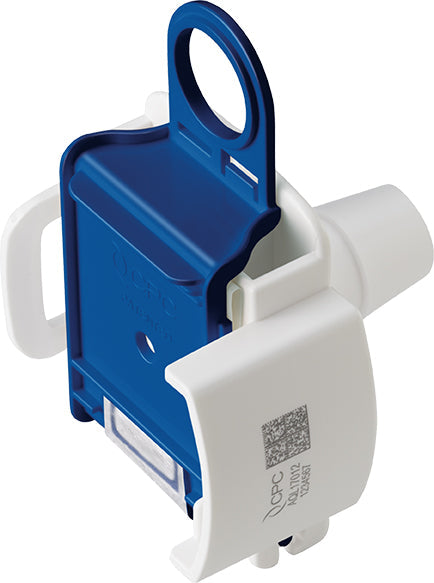

AseptiQuik® L Connectors The AseptiQuik L connectors enable quick and easy sterile connections in large-volume, high-flow production environments. Available in 3/4", 1" and 1-1/... AseptiQuik® L Connectors The AseptiQuik L connectors enable quick and easy sterile connections in large-volume, high-flow production environments. Available in 3/4", 1" and 1-1/2" hose barb sizes, the AseptiQuik L featues an easy-to-use 3-step design that simplifies system integration and minimizes the risk of operator error. The connectors' robust construction provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from the interchangeable connection sanitary flow solutions for full-scale bioprocessing production environments with the quality and market availability they expect from the leader in single-use connection technology. Biopharmaceutical manufacturers benefit from a full range of interchangeable 3/4" to 1½" flow solutions for production environments with the quality and market availability they expect from the leader in single-use connection technology. Genderless design: Eases integration of single-use systems with one part number for both halves. Robust construction: Repeatable and reliable performance with no additional hardware required. FLIP-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error. Integrated pull tab covers: Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes. CPC Click: Audible confirmation of assembly. Chemical Compatibility: AseptiQuik PPSU enables genderless connection for a greater range of chemical applications. pH range: AseptiQuik PPSU: Versatile connections across downstream processes with a pH range from 2 to 12. Media and buffer transfer Sampling Filtration process Harvest and collection Upstream and downstream connections Operating Conditions (Fluid Transfer): Pressure Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours Temperature 39°F to 104°F (4°C to 40°C) Materials: Connector Polycarbonate (white) Lock Ring and Thumb latch Polycarbonate (white) Pull Tabs Polycarbonate (blue, standard version) Caps Polypropylene (clear) Seals Silicone (clear), platinum-cured Membrane Polyethylene (standard version) Springs 316 Stainless Steel Sterilization: Gamma Up to 50 kGy irradiation Temperature One Cycle Up to 130°C for 60 minutes CV Value: Cv~30-57 Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path. Other: Color Molded white Termination Size 3/4" (19.05mm), 1" (25.4mm) hose barb and 1-1/2" (38.1mm) sanitary AseptiQuik® L Connectors Click on Datasheet link for a full list of our product datasheets!
