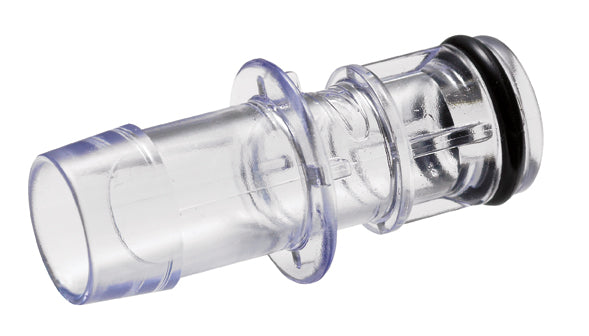

Raccord mâle CPC MPC MPC22006T03 - MPC vers 3/8" HB, sans valve, en polycarbonate (PC), classe VI
ITEM # 258-1326-FLS
SaleAt a Glance
MPC connectors make it easy to quickly connect-disconnect and transfer fluid or media anywhere in your process. Simply push the two halves together to connect and disconnect by pressing the thumb latch to separate. To protect the lines before and between transfers, caps and plugs are available for sealing off disconnected halves and optional locking sleeves are available to prevent accidental disconnects. Coupling halves can be rotated while connected to reduce tube kinks. The MPC offers additional flexibility when changing to a larger tubing size, with the Back-to-Back adapter connecting to the MPX product. Choose from a full line of male and female MPC connectors and configurations, in sizes to fit 1/8", 1/4" and 3/8" tubing. For a quick connection rely on the MPC series connectors.
Télécharger la fiche technique
Chaque produit. Chaque centime.
Sans risque grâce à notre garantie de remboursement à 100 %.
Conseils d'experts toujours gratuits
Notre équipe technique est heureuse de vous aider !
De vraies personnes. Pas de robots.
Les appels sont mis en relation avec un conseiller humain en moins de 9 secondes.
Forts de plus de 300 000 clients
Des produits utilisés dans 100 pays sur 7 continents.
Pricing (Based on quantity)
- ✓ ○
Add to your cart to unlock
Use code at checkout — unlocked! No code unlocked yet — add more to reach and get
Pack Size
Chaque produit. Chaque centime.
Sans risque grâce à notre garantie de remboursement à 100 %.
Conseils d'experts toujours gratuits
Notre équipe technique est heureuse de vous aider !
De vraies personnes. Pas de robots.
Les appels sont mis en relation avec un conseiller humain en moins de 9 secondes.
Forts de plus de 300 000 clients
Des produits utilisés dans 100 pays sur 7 continents.
Télécharger la fiche technique
Polycarbonate MPC Connector Coupling Insert for Reliable Fluid Transfer Applications
MPC connectors make it easy to quickly connect-disconnect and transfer fluid or media anywhere in your process. Simply push the two halves together to connect and disconnect by pressing the thumb latch to separate. To protect the lines before and between transfers, caps and plugs are available for sealing off disconnected halves and optional locking sleeves are available to prevent accidental disconnects. Coupling halves can be rotated while connected to reduce tube kinks. The MPC offers additional flexibility when changing to a larger tubing size, with the Back-to-Back adapter connecting to the MPX product. Choose from a full line of male and female MPC connectors and configurations, in sizes to fit 1/8", 1/4" and 3/8" tubing. For a quick connection rely on the MPC series connectors.
Features
- Ergonomic thumb latch: Easy to operate - even with gloved hands.
- USP Class VI materials: Meets biocompatibility requirements.
- Membrane Pull Tabs: Ensure simultaneous and secure removal of both membranes.
- Parting line-free hose barb: Eliminates potential leak path.
- ADCF materials: Meet BSE/TSE requirements.
Applications
- Media and buffer transfer
- Sampling
- Filtration process
- Harvest and collection
- Upstream and downstream connections
Specifications
| Operating Conditions (Fluid Transfer): | |
| Pressure | Vacuum to 60 psi, 4.14 bar |
| Temperature | Polycarbonate: -40°F to 250°F (-40°C to 121°C) & Polysulfone: -40°F to 300°F (-40°C to 149°C) |
| Materials: | |
| Main Component | Polycarbonate (purple tint) & Polysulfone (amber tint) (white) | Locking Sleeves | Polysulfone (white) |
| Thumb latches | Polycarbonate (white), PVDF (white) |
| O-rings | Silicone (clear), platinum-cured; Buna-N (black) - (not USP Class VI or ADCF) |
| Sterilization: | |
| Autoclave | Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repitions. Sterilize uncoupled only. & Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only. |
| Gamma Irradiation | Up to 50 kGy irradiation |
| Other: | |
| Tubing sizes | 1/8", 1/4" and 3/8" ID (3.22mm, 6.4mm and 9.5mm ID) |
| CV Value: | |
| Cv~5.5 (79.25) max | |
| CV values are based on gpm and psi, and lpm and bar (show in parentheses). | |
