W Connectors

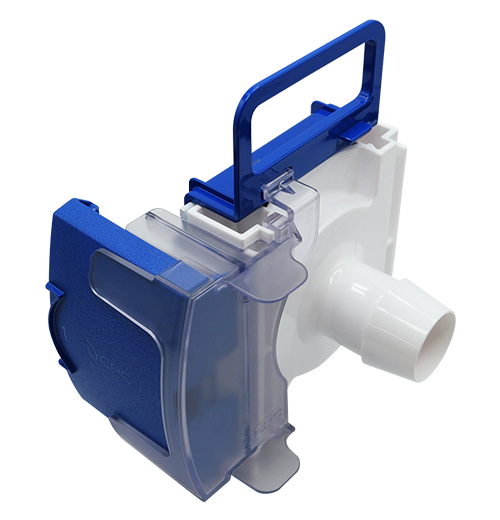

AseptiQuik® W Connectors Genderless AseptiQuik® W Connectors with nominal 1.5" flowpath enable quick and easy sterile connections, in large-volume, high-flow production, and pro... AseptiQuik® W Connectors Genderless AseptiQuik® W Connectors with nominal 1.5" flowpath enable quick and easy sterile connections, in large-volume, high-flow production, and process intensification environments. The 1", 1 ¼”, and 1 ½” genderless design simplifies system integration and minimizes the risk of operator error. The connectors’ robust construction provides reliable performance without the need for clamps or fixtures. Biopharmaceutical manufacturers benefit from interchangeable 1", 1 ¼”, and 1 ½” flow solutions for full-scale bioprocessing production environments with the quality and market availability they expect from the leader in the single-use connection technology. Genderless: Eases single-use systems specifications with one part number for both halves. FLIP-ALIGN-PULL-SNAP: Intuitive four-step connection process reduces risk of operator error. Secure Side Latches: Increases connector robustness for wide variety of applications. No Secondary Component Needed: No need to purchase and store extra materials or tools to complete your sterile connection process. Largest AseptiQuik Flow Diameter (1.5" Nominal Flow Path): Move liquid medias faster to increase process efficiency. Media and buffer transfer Sampling Filtration process Harvest and collection Upstream and downstream connections Operating Conditions (Fluid Transfer): Pressure Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours Temperature 34°F to 104°F (1°C to 40°C) Typical Flow Rate Cv Value Range: 39 to 118 Termination Size 1", 1 1/4", 1 1/2" hose barb, 1 1/2" Sanitary (25.4mm, 31.75mm, 38.1mm, 38.1mm) Materials: Connector Polycarbonate (white) Shipping Clip Polycarbonate (white) Pull Tabs/Caps Polycarbonate (white, HT version) Pull Tab Guide Polyphenylsulfone (gray) Side Latch Polyphenylsulfone (blue) Seals Silcone (clear), platinum-cured Membrane Hydrophobic Polyethersulfone (HT version), PTFE strip sticker CV Value: Gamma Up to 50 kGy irradiation Autoclave High Temp (HT) version Up to 266°F (130°C) for 60 minutes Cv~1.2 max (1/2" hose barb) Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path. AseptiQuik® W Connectors Click on Datasheet link for a full list of our product datasheets!
