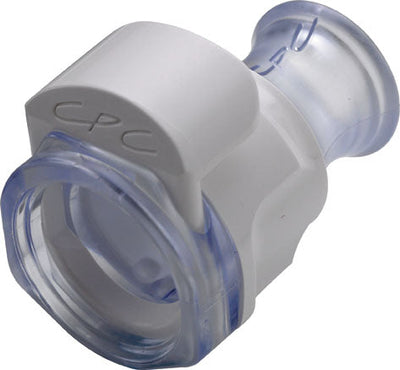

Polysulfone MPX Coupling Cap Connector for Single-Use Fluid Transfer Applications
MPX connectors make it easy to quickly connect-disconnect and transfer fluid or media anywhere in your process. Simply push the two halves together to connect and disconnect by pressing the thumb latch to separate. To protect the lines before and between transfers, caps and plugs are available for sealing off disconnected halves and optional locking sleeves are available to prevent accidental disconnects. Coupling halves can be rotated while connected to reduce tube kinks. The MPX offers additional flexibility when changing to a larger tubing size, with the Back-to-Back adapter connecting to the MPC product. Choose from a full line of male and female MPC connectors and configurations, in sizes to fit 1/2" and 3/8" tubing. For a quick connection rely on the MPX series connectors.
Features
- Ergonomic thumb latch: Easy to operate - even with gloved hands.
- USP Class VI materials: Meets biocompatibility requirements.
- Sterilizable by autoclave or gamma: Robust and economical for single-use applications.
- Parting line-free hose barb: Eliminates potential leak path.
- ADCF materials: Upstream and downstream connections.
Applications
- Media and buffer transfer
- Sampling
- Filtration process
- Harvest and collection
- Upstream and downstream connections
Specifications
| Key Features: | |
| Main Components | Polycarbonate (purple tint) & Polysulfone (amber tint) |
| Locking sleeves | Polysulfone (white) |
| Thumb latches | Polycarbonate (white), PVDF (white) | O-rings | Silicone (clear), platinum-cured |
| Sterilization: | |
| Autoclave | Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repitions. Sterilize uncoupled only. & Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only. |
| Gamma Irradiation | Up to 50 kGy irradiation |
| CV Value: | |
| Cv~14.2 (204.60) max | |
| Cv values are based on gpm and psi, and lpm and bar (show in parentheses). | |
