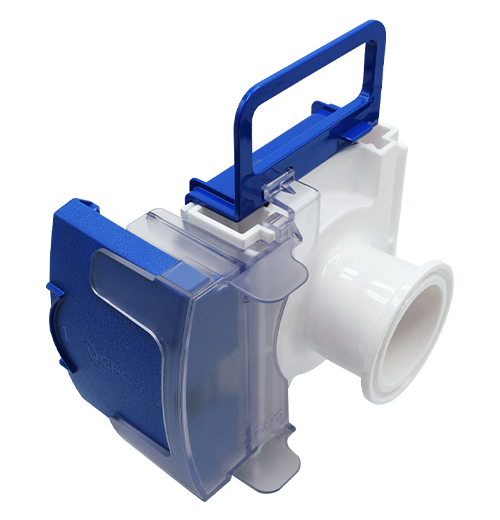

Genderless Sanitary Connector Enables Reliable Single-Use Aseptic Fluid Transfer Connections
Genderless AseptiQuik® W Connectors with nominal 1.5" flowpath enable quick and easy sterile connections, in large-volume, high-flow production, and process intensification environments. The 1", 1 ¼”, and 1 ½” genderless design simplifies system integration and minimizes the risk of operator error. The connectors’ robust construction provides reliable performance without the need for clamps or fixtures. Biopharmaceutical manufacturers benefit from interchangeable 1", 1 ¼”, and 1 ½” flow solutions for full-scale bioprocessing production environments with the quality and market availability they expect from the leader in the single-use connection technology.
Features
- Genderless: Eases single-use systems specifications with one part number for both halves.
- FLIP-ALIGN-PULL-SNAP: Intuitive four-step connection process reduces risk of operator error.
- Secure Side Latches: Increases connector robustness for wide variety of applications.
- No Secondary Component Needed: No need to purchase and store extra materials or tools to complete your sterile connection process.
- Largest AseptiQuik Flow Diameter (1.5" Nominal Flow Path): Move liquid medias faster to increase process efficiency.
Applications
- Media and buffer transfer
- Sampling
- Filtration process
- Harvest and collection
- Upstream and downstream connections
Specifications
| Operating Conditions (Fluid Transfer): | |
| Pressure | Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours |
| Temperature | 34°F to 104°F (1°C to 40°C) |
| Typical Flow Rate | Cv Value Range: 39 to 118 |
| Termination Size | 1", 1 1/4", 1 1/2" hose barb, 1 1/2" Sanitary (25.4mm, 31.75mm, 38.1mm, 38.1mm) |
| Materials: | |
| Connector | Polycarbonate (white) |
| Shipping Clip | Polycarbonate (white) |
| Pull Tabs/Caps | Polycarbonate (white, HT version) |
| Pull Tab Guide | Polyphenylsulfone (gray) |
| Side Latch | Polyphenylsulfone (blue) |
| Seals | Silcone (clear), platinum-cured |
| Membrane | Hydrophobic Polyethersulfone (HT version), PTFE strip sticker |
| CV Value: | |
| Gamma | Up to 50 kGy irradiation |
| Autoclave High Temp (HT) version | Up to 266°F (130°C) for 60 minutes |
| Cv~1.2 max (1/2" hose barb) | |
| Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path. | |
Documentation
AseptiQuik® W ConnectorsClick on Datasheet link for a full list of our product datasheets!
