CPC

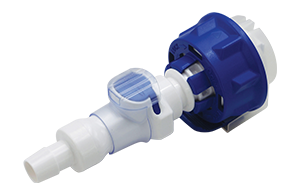

Inserto AseptiQuik C DC con raccordo a barb per tubo flessibile da 1/2".

ITEM # AQCDC22008-5

Sale

At a Glance

AseptiQuik® C DC Connector is the first all-in-one single-use connection technology to offer both a sterile connection and a sterile disconnection. With the new AseptiQuik C DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments. AseptiQuik C DC's intuitive CLICK-PULL-TWIST design enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple one-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path. The connector's robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.

Pricing (Based on quantity)

Quantity Price / Unit
MRP $1128.68
Sale $959.38 /unit
Total $959.38
MRP $1128.68
Sale $959.38 /unit
Total $959.38

Add to your cart to unlock

Add to your cart to unlock

Pack Size

Disponibile
Richiedi un preventivo per acquisti all'ingrosso
Offriamo un programma di prezzi speciali: crea un account gratuito per ottenere un ulteriore sconto del 5%, poi naviga e fai acquisti al prezzo riservato al tuo account. Crea un account gratuito

Ogni prodotto. Ogni centesimo.

Acquisto senza rischi grazie alla nostra garanzia di rimborso al 100%.

Consulenza di esperti sempre gratuita.

Il nostro team di assistenza tecnica sarà lieto di aiutarvi!

Persone vere. Niente robot.

Le chiamate vengono messe in contatto con un operatore entro 9 secondi.

Con oltre 300.000 clienti

Prodotti utilizzati in 100 paesi di 7 continenti.

Single-Use Polycarbonate Sterile Connector for Reliable Aseptic Fluid Transfer Applications

AseptiQuik® C DC Connector is the first all-in-one single-use connection technology to offer both a sterile connection and a sterile disconnection. With the new AseptiQuik C DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments. AseptiQuik C DC's intuitive CLICK-PULL-TWIST design enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple one-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path. The connector's robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.

Features

  • CLICK-PULL-TWIST Design: Intuitive? three-step connection process reduces risk of operator error.
  • Simple One-Step Disconnection: Maintains media sterility.
  • Membrane Pull Tabs: Ensure simultaneous and secure removal of both membranes.
  • Robust Construction: Integrated lock ring and innovative seal technology ensure reliable performance.
  • Market Availability: Open access through multiple supply chain partners.

Applications

  • Media and buffer transfer
  • Sampling
  • Filtration process
  • Harvest and collection
  • Upstream and downstream connections

Specifications

Operating Conditions (Fluid Transfer):
Pressure Up to 60 psi, 4.1 bar
Temperature 39°F to 104°F (4°C to 40°C)
Typical Flow Rate: Cv ~ 0.077 to 1.9
Materials:
Connector Polycarbonate (white)
Lock Ring and Thumb latch Polycarbonate (white)
Pull Tabs Polycarbonate (blue, standard version)
Caps Polypropylene (clear)
Seals Silicone (clear), platinum-cured
Membrane Polyethylene (standard version)
Springs 316 Stainless Steel
CV Value:
Cv~0.77 max (1/4" hose barb)
Cv~1.1 max (3/8" hose barb)
Cv~1.2 max (1/2" hose barb)
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.

Documentation

AseptiQuik® C DC Connector

Click on Datasheet link for a full list of our product datasheets!

Videos

Videos Coming Soon!
