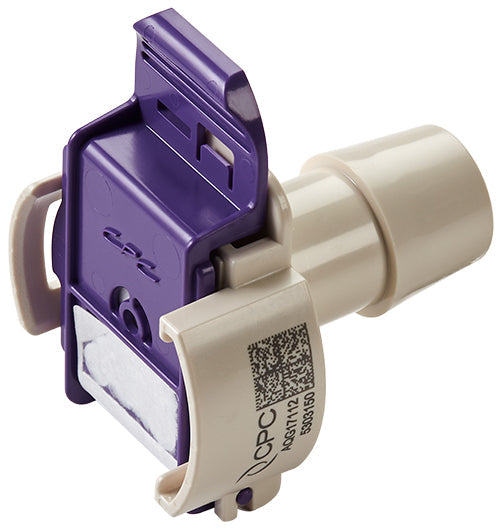

Corpo del connettore AseptiQuik G PPSU senza genere con raccordo a barb per tubo flessibile da 3/4".
ITEM # AQG17112-5
SaleAt a Glance
AseptiQuik®?G Sterile Connectors provide quick and easy sterile connections, even in non-sterile environments—a critical capability for biopharmaceutical manufacturers. Featuring an easy to use three step design and a wide range of options—including 1/8- to 1 1/2 -inch sizes and genderless connections—the AseptiQuik family allows you to transfer media easily with less risk of error. Their robust, reliable performance eliminates the need for clamps, fixtures or tube welders, giving you sterile, high quality single-use connections every time.
Scarica la scheda tecnica
Ogni prodotto. Ogni centesimo.
Acquisto senza rischi grazie alla nostra garanzia di rimborso al 100%.
Consulenza di esperti sempre gratuita.
Il nostro team di assistenza tecnica sarà lieto di aiutarvi!
Persone vere. Niente robot.
Le chiamate vengono messe in contatto con un operatore entro 9 secondi.
Con oltre 300.000 clienti
Prodotti utilizzati in 100 paesi di 7 continenti.
Pricing (Based on quantity)
- ✓ ○
Add to your cart to unlock
Use code at checkout — unlocked! No code unlocked yet — add more to reach and get
Pack Size
Ogni prodotto. Ogni centesimo.
Acquisto senza rischi grazie alla nostra garanzia di rimborso al 100%.
Consulenza di esperti sempre gratuita.
Il nostro team di assistenza tecnica sarà lieto di aiutarvi!
Persone vere. Niente robot.
Le chiamate vengono messe in contatto con un operatore entro 9 secondi.
Con oltre 300.000 clienti
Prodotti utilizzati in 100 paesi di 7 continenti.
Scarica la scheda tecnica
Genderless PPSU Hose Barb Connector for Sterile Single-Use Biopharmaceutical Fluid Transfer
AseptiQuik®?G Sterile Connectors provide quick and easy sterile connections, even in non-sterile environments—a critical capability for biopharmaceutical manufacturers. Featuring an easy to use three step design and a wide range of options—including 1/8- to 1 1/2 -inch sizes and genderless connections—the AseptiQuik family allows you to transfer media easily with less risk of error. Their robust, reliable performance eliminates the need for clamps, fixtures or tube welders, giving you sterile, high quality single-use connections every time.
Features
- Genderless design: Eases integration of single-use systems with universal mating between G connectors.
- FLIP-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error.
- Integrated Pull Tab Covers: Pull tabs act as protective cover reducing part complexity and ensure simultaneous removal of both membranes.
- Robust construction: Repeatable and reliable performance with no additional hardware required.
- Chemical Compatibility: AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
- The "CPC Click": Audible confirmation of assembly with no additional hardware required.
- pH range: AseptiQuik PPSU versatile connections across downstream processes with a pH range from 2 to 12.
Applications
- Media and buffer transfer
- Sampling
- Filtration process
- Harvest and collection
- Upstream and downstream connections
Specifications
| Operating Conditions (Fluid Transfer): | |
| Pressure | Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours |
| Temperature | 34°F to 104°F (1°C to 40°C) |
| Materials: | |
| Main Component | Polycarbonate (white) & Polyphenylsulfone - PPSU |
| Pull Tabs/Caps | Polycarbonate (blue, standard version) & Polycarbonate (white, HT version) & Polycarbonate (purple and gold tabs, PPSU versions) |
| Seals | Silicone (clear), platinum-cured |
| Membrane | Polyethylene (standard version, PPSU version) & Hydrophobic polyethersulfone with PTFE strip (HT versions) |
| Sterilization: | |
| Gamma Standard (blue) and PPSU (purple) Version | Up to 50 kGy irradiation |
| AutoClave (white, High Temp (HT) Version) | High Temp (HT) Version: Up to 266°F (130°C) for 60 minutes |
| CV Value: | |
| Cv Value Range: 1.5-3.1 | |
| Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path. | |
| Other: | |
| Termination Size | 1/4", 3/8", 1/2", 3/4" ID hose barb (6.4mm, 9.5mm, 12.7mm, 19.0mm) and 3/4", 1-1/2" sanitary |
Documentation
AseptiQuik® G ConnectorsClick on Datasheet link for a full list of our product datasheets!
Videos
Videos Coming Soon!
Shipping & Returns
Resi entro 30 giorni
Spediamo entro 1-2 giorni lavorativi. Accettiamo resi entro 30 giorni dall'acquisto.
