If you work in a laboratory setting, you already know that something as straightforward as a laboratory bottle cap can make or break a workflow. The wrong cap means leaks, contamination risks, or wasted time swapping out fittings every time the application changes. That's exactly the problem that the VersaCap laboratory bottle cap system was designed to solve and it does it remarkably well. This guide walks through everything you need to know: how the system works, what sizes and styles are available, what materials are used, and why labs across research, biotech, and pharmaceutical manufacturing rely on it.
What Is the VersaCap Laboratory Bottle Cap System?
The VersaCap system is a patented, modular laboratory bottle closure system built around a core concept: one cap body, many interchangeable top connections. Instead of purchasing a new cap every time you need a different port configuration or tubing size, you simply swap out the adapter insert on the same base cap. This makes it one of the most flexible lab liquid handling solutions available today. The system is widely used across BioProcess applications, general research labs, pharmaceutical manufacturing, and diagnostic centers where reliable, repeatable fluid transfer is essential.
At its core, an open VersaCap body accepts a variety of interchangeable top-connectors, while a closed VersaCap functions as a straightforward sealed closure. Both styles share the same ergonomic design with large handles and finger grips, making them easy to tighten and open even when wearing gloves.
Available Sizes: Industry-Standard Cap Formats
One of the biggest practical advantages of this system is that it comes in industry-standard bottle cap sizes, which means it fits bottles and carboys you already have in your lab without requiring proprietary containers. The available sizes cover the most common laboratory and bioprocessing vessels:
Cap Size |
Common Application |
Vessel Compatibility |
|---|---|---|
38-430 (38mm) |
HPLC, small reagent bottles |
Standard 38mm threaded bottles |
53B (53mm) |
General lab bottles & flasks |
53mm threaded bottles and flasks |
GL45 |
Glass media & reagent bottles |
GL45 glass laboratory bottles |
83B (83mm) |
Carboys & large containers |
Most standard carboys |
120mm (Wide Mouth) |
High-volume carboys |
20L, 40L & 75L carboys |
The 83mm carboy cap is probably the most widely used size in bioprocessing environments since it fits the majority of standard laboratory carboys. The 120mm wide-mouth cap is designed for high-volume applications where larger-bore access is required. The 38-430 cap is popular in HPLC and chromatography setups where small-bottle precision matters.
Cap Styles: Closed, Open, and Vented

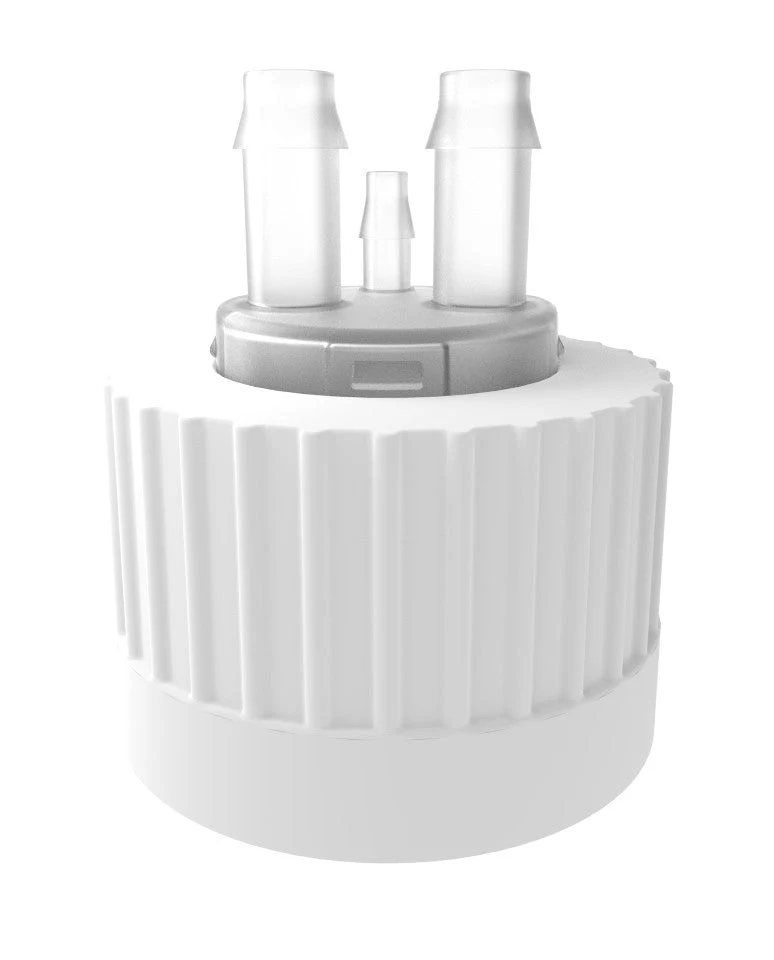

The system offers three primary laboratory bottle cap styles to match different application needs. A closed cap provides a simple, leak-proof seal ideal for storage, transport, or any situation where no tubing access is required. An open cap accepts interchangeable adapter inserts and is the foundation of the modular system; it can be fitted with hose barb adapters, silicone adapters, aseptic connectors, or air vent filters depending on the application. A vented top cap features an integrated 0.2µm PTFE membrane vent that allows pressure equalization while keeping contaminants out useful in any application where sterile venting is required during filling or fluid transfer. All three styles are stackable for convenient storage and organized inventory management.
Hose Barb and Adapter Options
The open cap configuration is where the real versatility shows up. Quick-connect hose barb options come in combinations of two, three, and four ports, with barb sizes of 1/4 inch and 3/8 inch for quick-connect ports and 1/8 inch, 1/4 inch, 5/16 inch, and 1/2 inch for molded-in barb options. This range makes it straightforward to match the cap's tubing connections to your specific peristaltic pump tubing, silicone tubing, or process line without needing additional reducers or fittings. For users who need to monitor what's happening inside the vessel, there's also a Clearview adapter that provides a transparent window useful for verifying solution homogenization without opening the container.
Materials and Autoclave Compatibility
VersaCap bottle caps are manufactured from polypropylene, which is a chemically resistant, durable thermoplastic used widely in laboratory settings. The caps are FDA-grade, BPA-free, and constructed with USP Class VI components the highest standard for materials used in pharmaceutical and bioprocessing applications. The platinum-cured silicone gaskets are replaceable, which extends the service life of the cap body considerably. Importantly, the entire assembly is autoclavable at 121°C (250°F) at 15 PSI for 20 minutes, making it suitable for sterile laboratory workflows where autoclaving is a routine part of preparation. Manufacturing is carried out under ISO 9001 and ISO 13485 quality systems, which are the relevant standards for scientific and medical device manufacturing environments.
Where Are VersaCap Systems Used?
These laboratory bottle cap systems are a practical solution across a surprisingly broad range of disciplines. In pharmaceutical manufacturing, they facilitate clean, reliable aseptic fluid transfer between vessels without the risk of contamination. In biotechnology and cell culture labs, the ability to attach air vent filters or 0.2 micron filters directly to the cap makes sterile gas exchange straightforward. In HPLC laboratories, the 38mm format is used extensively for solvent and waste management. Research labs value the system because one cap body can be reconfigured for multiple applications, reducing the total number of individual SKUs that need to be stocked and managed.
Why Source Your VersaCap System from LabSafetyShop?
LabSafetyShop carries a curated selection of VersaCap laboratory bottle cap systems across all standard sizes and styles closed caps, open caps, vented caps, and adapter accessories with competitive pricing and reliable availability. Their team understands lab procurement and makes it easy to find the exact cap size, port configuration, and material specification your workflow requires. Whether you're outfitting a single bench or sourcing for a full facility, LabSafetyShop is a dependable, knowledgeable supplier.
Frequently Asked Questions
Are VersaCap laboratory bottle caps compatible with all standard lab carboys and bottles?
VersaCap caps are available in industry-standard sizes including 38-430, 53B, GL45, 83B, and 120mm, which cover the vast majority of standard laboratory carboys and bottles. Always verify the thread size of your vessel before ordering to ensure compatibility.
Can VersaCap bottle caps be autoclaved for sterile applications?
Yes. VersaCap caps are made from autoclavable polypropylene and can withstand standard autoclaving at 121°C (250°F) at 15 PSI for 20 minutes. This makes them suitable for sterile lab workflows and aseptic processing environments.
What is the difference between an open VersaCap and a closed VersaCap?
A closed cap provides a simple sealed closure for storage or transport. An open cap accepts interchangeable adapter inserts including hose barbs, silicone adapters, and vent filters, making it the modular option for active fluid transfer applications.
What tubing sizes do VersaCap hose barb adapters support?
Molded-in hose barb options include 1/8", 1/4", 5/16", and 1/2" sizes. Quick-connect port configurations are available in 1/4" and 3/8" barb sizes, with two-, three-, or four-port combinations to match most standard lab tubing connections.
Are VersaCap caps safe for pharmaceutical and bioprocessing use?
Yes. VersaCap caps are FDA-grade, BPA-free, and produced with USP Class VI materials. They are manufactured under ISO 9001 and ISO 13485 quality systems, meeting compliance requirements for pharmaceutical, biotech, and clinical laboratory environments.
