L Connectors

9 products

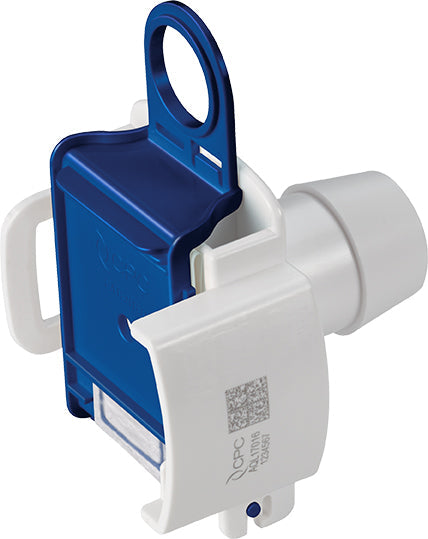

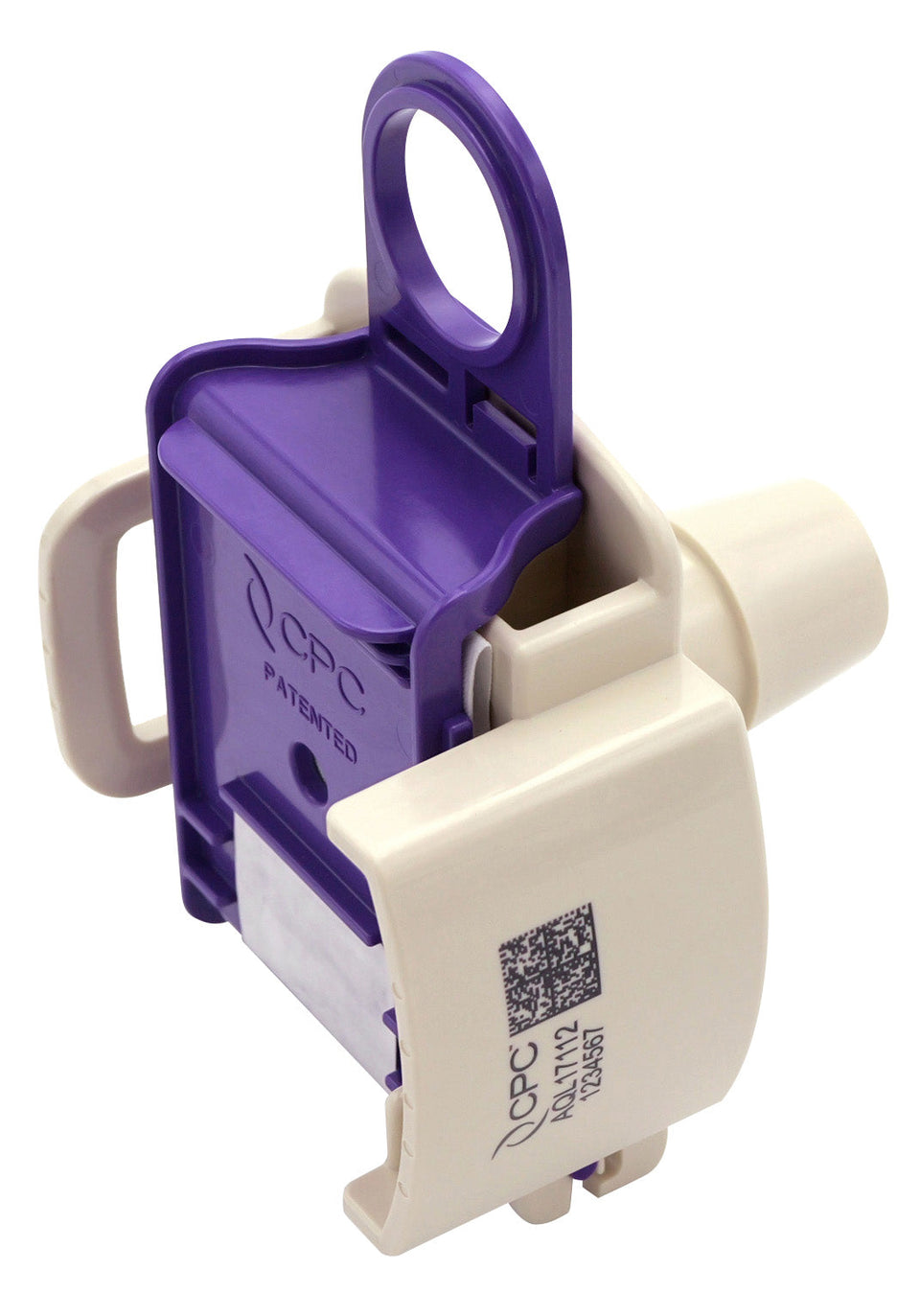

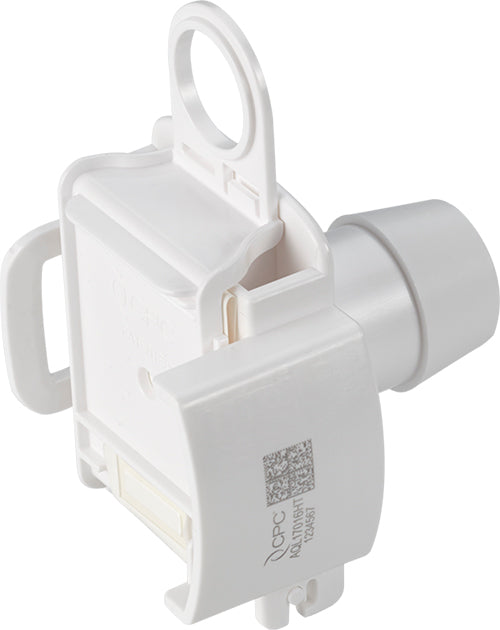

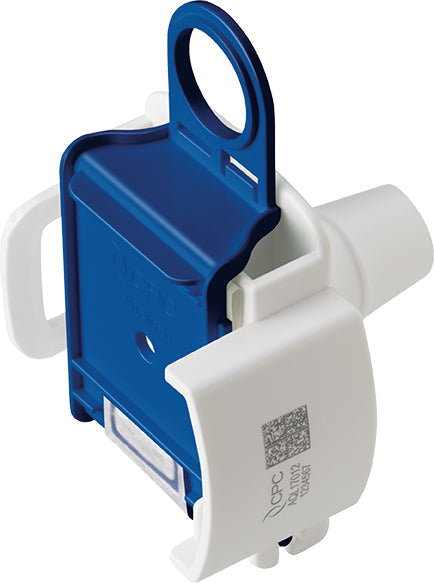

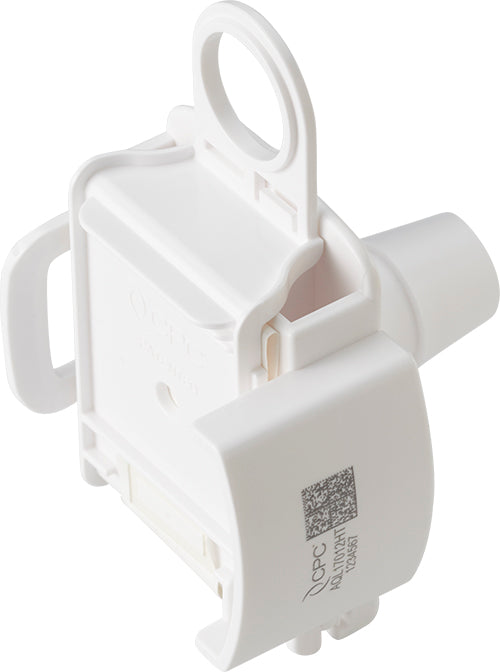

The AseptiQuik L connectors enable quick and easy sterile connections in large-volume, high-flow production environments. Available in 3/4", 1" and 1-1/2" hose barb sizes, the AseptiQuik L featues an easy-to-use 3-step design that simplifies system integration and minimizes the risk of operator error. The connectors' robust construction provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from the interchangeable connection sanitary flow solutions for full-scale bioprocessing production environments with the quality and market availability they expect from the leader in single-use connection technology. Biopharmaceutical manufacturers benefit from a full range of interchangeable 3/4" to 1½" flow solutions for production environments with the quality and market availability they expect from the leader in single-use connection technology.

Genderless Hose Barb Connector for Sterile Bioprocessing Fluid Transfer Applications

Features

Genderless design: Eases integration of single-use systems with one part number for both halves.
Robust construction: Repeatable and reliable performance with no additional hardware required.
FLIP-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error.
Integrated pull tab covers: Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes.
CPC Click: Audible confirmation of assembly.
Chemical Compatibility: AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
pH range: AseptiQuik PPSU: Versatile connections across downstream processes with a pH range from 2 to 12.

Applications

Media and buffer transfer
Sampling
Filtration process
Harvest and collection
Upstream and downstream connections

Specifications

Operating Conditions (Fluid Transfer):
Pressure	Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours
Temperature	39°F to 104°F (4°C to 40°C)
Materials:
Connector	Polycarbonate (white)
Lock Ring and Thumb latch	Polycarbonate (white)
Pull Tabs	Polycarbonate (blue, standard version)
Caps	Polypropylene (clear)
Seals	Silicone (clear), platinum-cured
Membrane	Polyethylene (standard version)
Springs	316 Stainless Steel
Sterilization:
Gamma	Up to 50 kGy irradiation
Temperature	One Cycle Up to 130°C for 60 minutes
CV Value:
Cv~30-57
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.
Other:
Color	Molded white
Termination Size	3/4" (19.05mm), 1" (25.4mm) hose barb and 1-1/2" (38.1mm) sanitary
