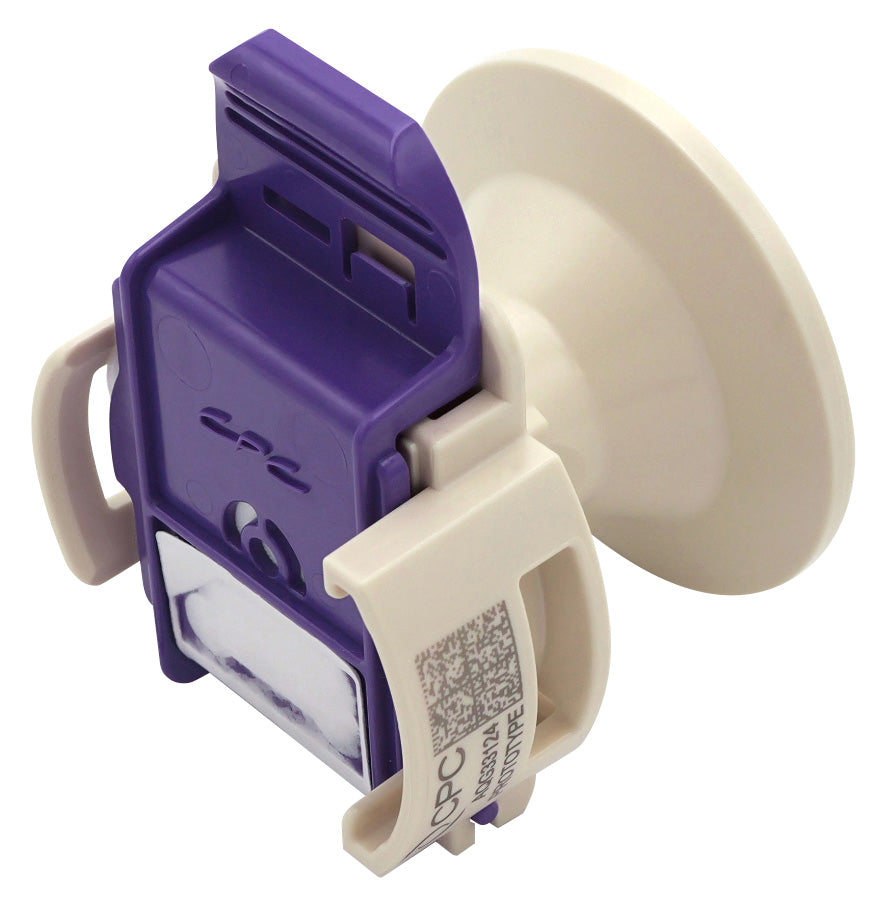

1 1/2" Sanitary Genderless AseptiQuik G PPSU Connector Body

ITEM # AQG33124-5

Sale

At a Glance

AseptiQuik®?G Sterile Connectors provide quick and easy sterile connections, even in non-sterile environments—a critical capability for biopharmaceutical manufacturers. Featuring an easy to use three step design and a wide range of options—including 1/8- to 1 1/2 -inch sizes and genderless connections—the AseptiQuik family allows you to transfer media easily with less risk of error. Their robust, reliable performance eliminates the need for clamps, fixtures or tube welders, giving you sterile, high quality single-use connections every time.

Download Datasheet

PDF

Download Datasheet

Every Product. Every Penny.

Risk-free with our 100% Money-Back Guarantee.

Always Free Expert Advice

Our Tech Team is happy to help!

Real People. No Robots.

Calls connect to a human within 9 seconds.

300K Customers Strong

Products used in 100 countries on 7 continents.

Pricing (Based on quantity)

Quantity Price / Unit

MRP $657.16

Sale /unit

Total $558.59

Add to your cart to unlock

Pack Size

Made to Order

This item is made to order and ships in 2–4 weeks.

Request a Bulk Quote

We offer a special pricing program — create a free account to unlock an additional 5% off, then browse and shop at your account price. Create a free account

Every Product. Every Penny.

Risk-free with our 100% Money-Back Guarantee.

Always Free Expert Advice

Our Tech Team is happy to help!

Real People. No Robots.

Calls connect to a human within 9 seconds.

300K Customers Strong

Products used in 100 countries on 7 continents.

Download Datasheet

PDF

Download Datasheet

Genderless PPSU Sanitary Connector Body For Sterile Single-Use Fluid Transfer

Features

Genderless design: Eases integration of single-use systems with universal mating between G connectors.
FLIP-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error.
Integrated Pull Tab Covers: Pull tabs act as protective cover reducing part complexity and ensure simultaneous removal of both membranes.
Robust construction: Repeatable and reliable performance with no additional hardware required.
Chemical Compatibility: AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
The "CPC Click": Audible confirmation of assembly with no additional hardware required.
pH range: AseptiQuik PPSU versatile connections across downstream processes with a pH range from 2 to 12.

Applications

Media and buffer transfer
Sampling
Filtration process
Harvest and collection
Upstream and downstream connections

Specifications

Operating Conditions (Fluid Transfer):
Pressure	Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours
Temperature	34°F to 104°F (1°C to 40°C)
Materials:
Main Component	Polycarbonate (white) & Polyphenylsulfone - PPSU
Pull Tabs/Caps	Polycarbonate (blue, standard version) & Polycarbonate (white, HT version) & Polycarbonate (purple and gold tabs, PPSU versions)
Seals	Silicone (clear), platinum-cured
Membrane	Polyethylene (standard version, PPSU version) & Hydrophobic polyethersulfone with PTFE strip (HT versions)
Sterilization:
Gamma Standard (blue) and PPSU (purple) Version	Up to 50 kGy irradiation
AutoClave (white, High Temp (HT) Version)	High Temp (HT) Version: Up to 266°F (130°C) for 60 minutes
CV Value:
Cv Value Range: 1.5-3.1
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.
Other:
Termination Size	1/4", 3/8", 1/2", 3/4" ID hose barb (6.4mm, 9.5mm, 12.7mm, 19.0mm) and 3/4", 1-1/2" sanitary
