C Connectors
12 productsManufactured by CPC®, AseptiQuik® C Connectors provide quick and easy sterile connections, even in non-sterile environments. AseptiQuik® C connectors’ “CLICK-PULL-TWIST” design enables users to transfer media easily with less risk of operator error. The connectors’ robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can make sterile connections with the quality and market availability they expect from the leader in single-use connection.

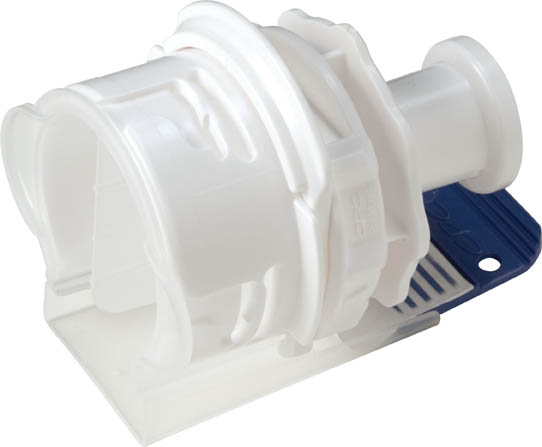

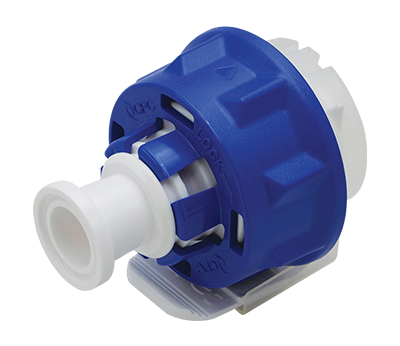

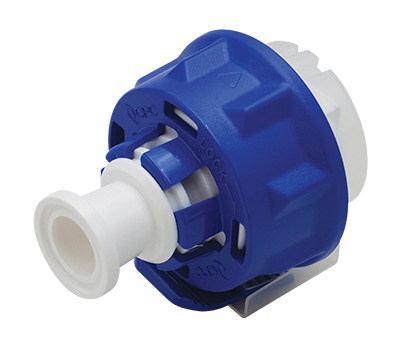

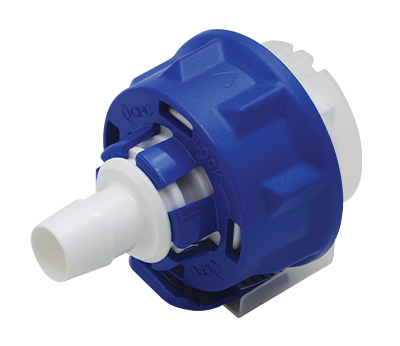

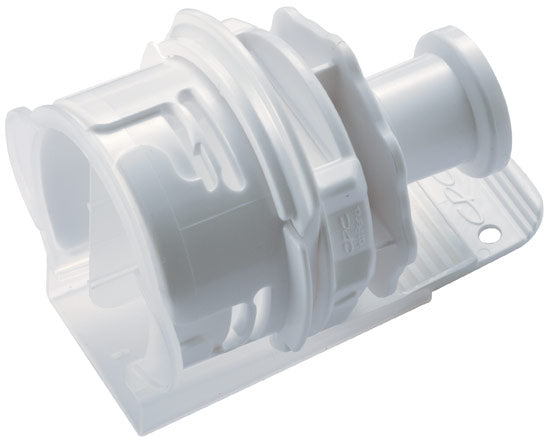

High Temperature Polycarbonate Aseptic Connector Insert For Sterile Biopharmaceutical Fluid Transfer
Manufactured by CPC®, AseptiQuik® C Connectors provide quick and easy sterile connections, even in non-sterile environments. AseptiQuik® C connectors’ “CLICK-PULL-TWIST” design enables users to transfer media easily with less risk of operator error. The connectors’ robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can make sterile connections with the quality and market availability they expect from the leader in single-use connection.
Features
- CLICK-PULL-TWIST Design – Intuitive three-step connection process that reduces the risk of operator error.
- Membrane Pull Tabs – Enable simultaneous and secure removal of both membranes for a reliable sterile connection.
- Robust Construction – Delivers repeatable, dependable performance without the need for additional hardware.
- Integrated Lock Ring – Secures the final connection and prevents accidental disassembly.
- CPC Click Confirmation – Provides an audible “click” to confirm proper and complete assembly.
Applications
- Sterile media and buffer transfer in biopharmaceutical manufacturing
- Upstream bioprocess connections for bioreactors and seed trains
- Downstream processing integration for filtration and chromatography systems
- Cell and gene therapy fluid handling in closed systems
- Single-use sterile assemblies for secure aseptic connections
Specifications
| Operating Conditions (Fluid Transfer) | |
| Pressure | 60 psi (4.1 bar) |
| Temperature | 39°F to 104°F (4°C to 40°C) |
| Typical Flow Rate | Cv ~14.4 max |
| Materials | |
| Connector | Polycarbonate (white), USP Class VI, ADCF |
| Lock Ring | Polycarbonate (blue), USP Class VI, ADCF |
| Pull Tabs | Polycarbonate (blue, standard version), USP Class VI, ADCF |
| Pull Tabs | Polycarbonate (white, HT version), USP Class VI, ADCF |
| Caps | Polypropylene (clear), USP Class VI, ADCF |
| Seals | Silicone (clear), platinum-cured, USP Class VI, ADCF |
| Membrane | Polyethylene (standard version), USP Class VI, ADCF |
| Membrane | Hydrophobic polyethersulfone (HT version), USP Class VI |
| Sterilization | |
| Gamma | Up to 50 kGy irradiation |
| Autoclave | High Temp (HT) Version: Up to 266°F (130°C) for 30 minutes |
| Other | |
| Termination Size | 1/2" ID hose barb (12.7 mm), 3/8" hose barb (9.5 mm) and 3/4" sanitary |
| Cv Value | |
| Cv ~14.4 max | |
| Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). | |
| WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions | |
Documentation
AseptiQuik® C Connectors Datasheet Download PDF →Videos
Videos Coming Soon!
