X Connectors
12 productsThe AseptiQuik X 1-inch large format connectors provide quick and easy sterile connections for high flow applications, even in non-sterile environments. The ease-of-use “TWIST-PULL-TWIST” design enables users to quickly transfer large volumes of media easily with less risk of operator error. The connector's robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1” sterile connections with the quality and market availability they expect from the leader in single-use connection technology.

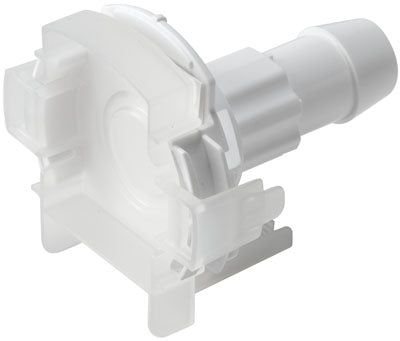

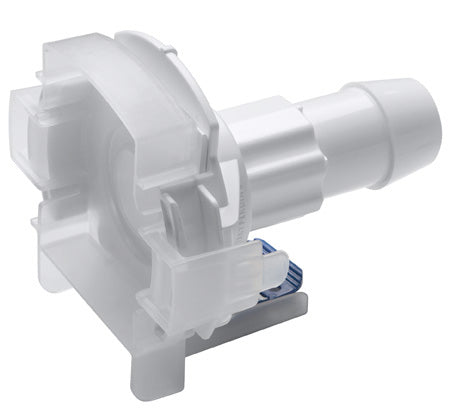

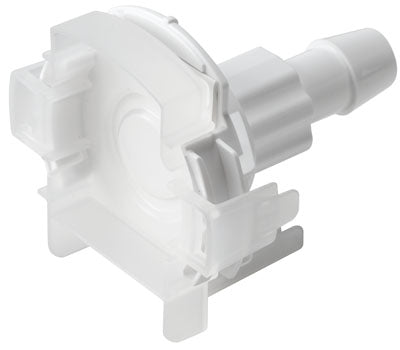

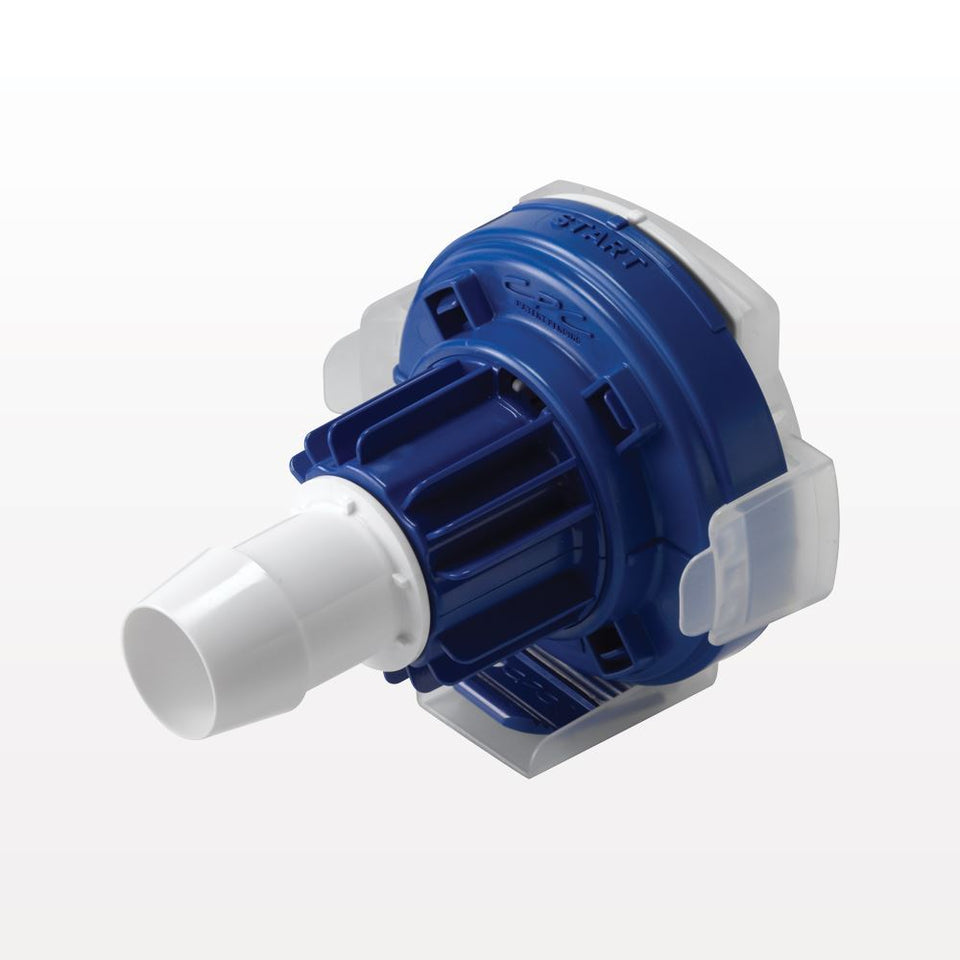

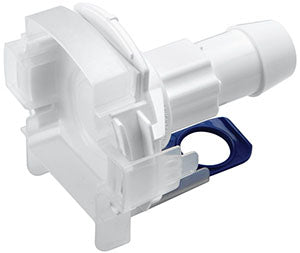

Sterile Single-Use Hose Barb Connector For High Flow Fluid Transfer
The AseptiQuik X 1-inch large format connectors provide quick and easy sterile connections for high flow applications, even in non-sterile environments. The ease-of-use “TWIST-PULL-TWIST” design enables users to quickly transfer large volumes of media easily with less risk of operator error. The connector's robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1” sterile connections with the quality and market availability they expect from the leader in single-use connection technology.
Features
- TWIST-PULL-TWIST Design: Intuitive? three-step connection process reduces risk of operator error.
- Membrane Pull Tabs: Ensure simultaneous and secure removal of both membranes.
- Robust Construction: Repeatable and reliable performance with no additional hardware required.
- Integrated Lock Ring: Secures final connection preventing disassembly.
- CPC Click: Audible confirmation of completed assembly steps.
Applications
- Media and buffer transfer
- Sampling
- Filtration process
- Harvest and collection
- Upstream and downstream connections
Specifications
| Sterilization: | |
| Gamma | Up to 50 kGy irradiation |
| Autoclave | High Temp (HT) version: Up to 266°F (130°C) for 30 minutes |
| Operating Conditions (Fluid Transfer): | |
| Pressure | Up to 60 psi, 4.1 bar |
| Temperature | 39°F to 104°F (4°C to 40°C) |
| Typical Flow Rate | Cv ~ 14.4 max |
| Materials: | |
| Main Components | Polycarbonate (white) |
| Lock Ring | Polycarbonate, PVDF (blue) & Polycarbonate (blue, standard version), USP Class VI, ADCF |
| Pull Tabs | Polycarbonate (white, HT version), USP Class VI, ADCF |
| Caps | Polypropylene (clear), USP Class VI, ADCF |
| Seals | Silicone (clear), platinum-cured, USP Class VI, ADCF & Polyethlene (standard version), USP Class VI, ADCF |
| Membrane | Hydrophobic polyethersulfone (HT version), USP Class VI |
| CV Value: | |
| Cv~14.4 max | |
| Cv values are based on gpm and psi, and lpm and bar (shown in parentheses). | |
| Other: | |
| Termination Size | 3/4" and 1" ID hose barb (19.0mm and 25.4mm), 1-1/2" |
